Smart Led Bathroom Mirror
Lighting: 120-LED light strip; three-color touch switching (3000K / 4000K / 6000K), stepless dimming via long press
Functions: Heating and defogging over 60% of the central area; time and temperature display
Design: Aluminum alloy light trough, PVC outer frame, rounded corners, backlit design
Description
Technical Parameters
Overview

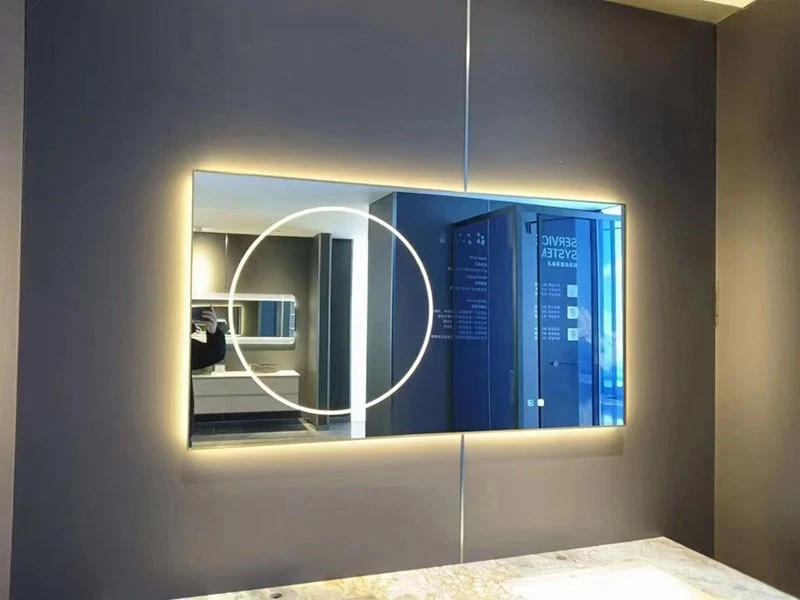

smart led bathroom mirror is mainly used in residential bathrooms, hotel bathroom spaces, apartment show units, and project wash areas. The product centers on a high-definition mirror paired with an LED lighting system, making it suitable for projects that require vanity lighting, anti-fog performance, and coordinated bathroom solutions. Standard configurations can integrate touch controls, lighting adjustment, and demister functions, making it suitable for bulk procurement of smart bathroom mirrors and project mirrors.
Specifications
|
Specification Item |
Reference Data |
|
Product Name |
Smart LED Bathroom Mirror |
|
Mirror Type |
HD Silver Mirror / Copper-Free Eco Mirror |
|
Mirror Thickness |
4mm / 5mm |
|
Safety Backing |
Safety Film |
|
Back Panel Material |
Aluminum Back Panel / PVC Waterproof Back Panel |
|
Standard Sizes |
600×800mm / 700×900mm / 800×1000mm |
|
Lighting CCT |
3000K / 4000K / 6000K |
|
Dimming Option |
Touch Dimming / Stepless Dimming |
|
Demister Function |
Electric Demister |
|
Installation Type |
Wall-Mounted |
Applications
- Bathroom mirror cabinets
- Dressing mirror cabinets
- Wall-storage cabinets
- Apartment bathroom cabinet projects
- Hotel bathroom mirror cabinets
- Custom mirror-cabinet systems
Customization
Mirror size, shape, and feature configuration can be customized to project requirements. Round, square, rounded-corner, and irregular designs can be developed for different market needs, while voltage standard, back-panel construction, logo, and packaging plan can also be confirmed.
After-Sales Service
If the production order is found to be different from the approved sample, it can be checked against the confirmed sample, drawings, and order documents. Missing items, quantity shortages, and missing accessories can be made up accordingly. If there is any problem with the LED strip, power supply, touch controls, or demister function, the issue can be dealt with by replacing the relevant part or the affected component. In the case of transit damage, photos of the outer carton, packaging, and damaged parts, together with the order details and quantity, need to be provided for checking. Once confirmed, the affected parts can be replenished, replaced, or remade. For repeat orders in ongoing projects, supply can follow the requirements of the original order.
Frequently Asked Questions
Q: Can the mirror be made in 4mm or 5mm? Does it come with safety film?
-
A: Standard options are 4mm or 5mm mirrors, and a safety film can be applied to the back according to project requirements.
Q: Does it support 110V and 220V? Can CE, UL, ETL, or RoHS requirements be met?
-
A: Yes. The voltage standard can be confirmed according to the destination market and order requirements, and CE, UL, ETL, RoHS, and similar requirements can be matched as needed.
Q: Does the lighting support 3000K / 4000K / 6000K and stepless dimming?
-
A: Yes. Standard options include single CCT, three-CCT switching, or stepless dimming, with the exact configuration confirmed by order requirements.
Q: Is the demister function partial heating or full-surface heating?
-
A: The standard configuration uses a rear heating pad, focusing on the most commonly used mirror area. The heated area can be adjusted according to mirror size and project needs.
Q: How are large-size products packed for shipping?
-
A: Standard packing uses foam, protective corner guards, and cartons. For large-size or export orders, wooden-crate reinforcement can be added, with the exact packing method confirmed according to size and shipping requirements.
